DDI(DNS、DHCP、IPアドレス管理)をネクストレベルへ
組織はネットワークに依存しています。そしてネットワークは、確実かつ安全に運用するためにDDI、ロードバランシング、DNSプロテクションといったコアサービスに依存しています。
Infobloxは、一元管理されたクラウドとハイブリッドシステムに、ネクストレベルのセキュリティ、信頼性、自動化をもたらします。
Infobloxは、従来のセキュリティソリューションやアプライアンスでは提供できない包括的なネットワーク保護を提供します。
Infobloxのプラットフォームでは、独自のDNSに特化した防御、コンテンツ認識型の脅威インテリジェンス、向上した可視性、既存のインフラストラクチャとのシームレスな統合という特長を生かし、急速に進化する無数のネットワーク脅威をすばやく特定、分離、修復できます。
オンプレミスおよびクラウドによりDNSセキュリティを提供。
全てのDNSクエリ (ドメイン情報) とレスポンス (IP情報) を、最新のfeed情報を利用し、DNSのFirewallとしてブロック。
DNSクエリの振舞いをリアルタイムに検査することで、DNSトンネリングによる情報漏洩も防ぐ。
DNS Firewall機能で検知した疑わしいドメインを迅速に調査するための検索システム。
複数脅威情報のデータエクスチェンジを提供。
DNSサーバのDDoS対策機能用ライセンス。DNS専業ベンダーの知見を活用し、DNSサーバとしてあるべきDDoS対策アーキテクチャを実現。
Infoblox Gridを活用した統合管理が可能な従来型のオンプレミスDDI製品。

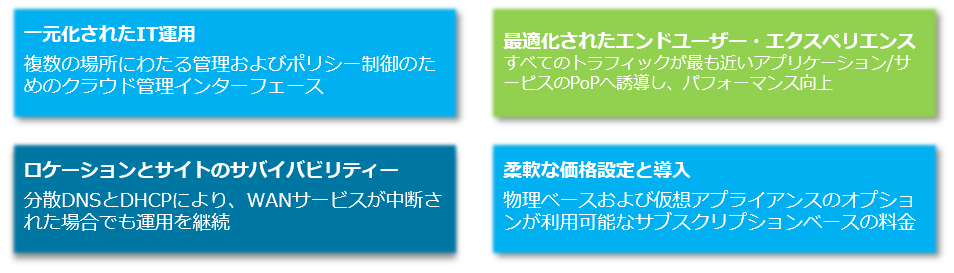

クラウドマネージド型DDIサービス。
アプライアンスは、VM、コンテナ、または物理アプライアンスで提供。
Infoblox Grid内のMemberとして稼動し、Reporting機能を提供するInfobloxのアプライアンス。
Grid内の統計情報やログ、利用状況などを蓄積し分析するための機能を提供。
Infoblox Grid内のMemberとして稼動し、IPAM機能を拡張するInfobloxのアプライアンス。
ネットワーク機器から各種情報を取得し、IPアドレス管理に必要な情報を拡充する。
GSLB(Global Server Load Balancing)の機能を提供。
エージェントレスによるMicrosoft DNS/DHCPの完全統合管理。(既存MSをGridで完全運用管理可能)

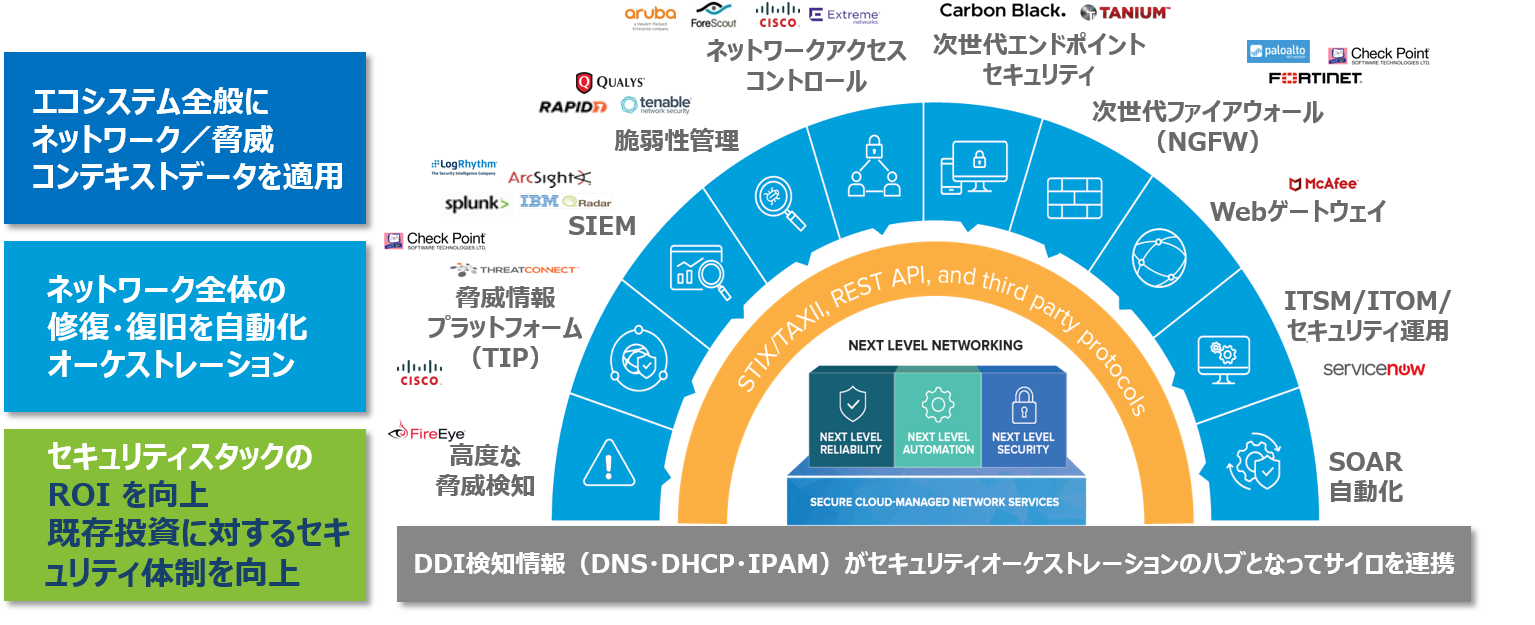

DDI検知情報がセキュリティオーケストレーションのハブとなりサイロを連携。
ネットワーク全体の修復・復旧の自動化・オーケストレーションを実現。
モデル | DNSスペック | DHCPスペック | 適応範囲 | |
---|---|---|---|---|
![]() |
Trinzic 815 | 6,000 DNS QPS | DHCP Leases Per Second 90 | 小規模支店 |
![]() |
Trinzic 825 | 22,500 DNS QPS | DHCP Leases Per Second 150 | 小中規模支店 |
![]() |
Trinzic 1415 | 45,000 DNS QPS | DHCP Leases Per Second 300 | 中規模支店、支社 |
![]() |
Trinzic 1425 | 75,000 DNS QPS | DHCP Leases Per Second 450 | 支社、本社 |
![]() |
Trinzic 2215 | 90,000 DNS QPS | DHCP Leases Per Second 550 | 本社、データセンター |
![]() |
Trinzic 2225 | 200,000 DNS QPS | DHCP Leases Per Second 900 | 本社、データセンター |
![]() |
Trinzic 4015 | 300,000 DNS QPS | DHCP Leases Per Second 1400 | 本社、データセンター |
![]() |
Trinzic 4025 | 300,000 DNS QPS | DHCP Leases Per Second 1400 | 本社、データセンター |
TE-xxx5 Virtual Appliances | |
---|---|
Hypervisor (Private Cloud) supported | MS Hyper-V, Nutanix AHV, OpenStack KVM, and VMWare ESXi |
Public Cloud platform supported | AWS, GCP, and MS Azure |
Name | Pricing Model | Description |
---|---|---|
BloxOne DDI Essentials | Per License | エントリーレベルのDDI管理 500 QPSおよび5 LPSのソフトウェアライセンス |
BloxOne DDI Business | Per License | 高信頼性のDDIのコア機能500 QPSおよび5 LPSのソフトウェアライセンス |
BloxOne DDI Advanced | Per License | 高度な機能を備えたフル機能のDDI500 QPSおよび5 LPSのソフトウェアライセンス |
BloxOne Appliance | Per Unit | 物理アプライアンス(オプション)最大5000QPSおよび50LPSの定格容量 |
Reporting Appliances | |
---|---|
Hypervisor (Private Cloud) supported | MS Hyper-V, Nutanix AHV, OpenStack KVM, and VMWare ESXi |
モデル | |
---|---|
![]() |

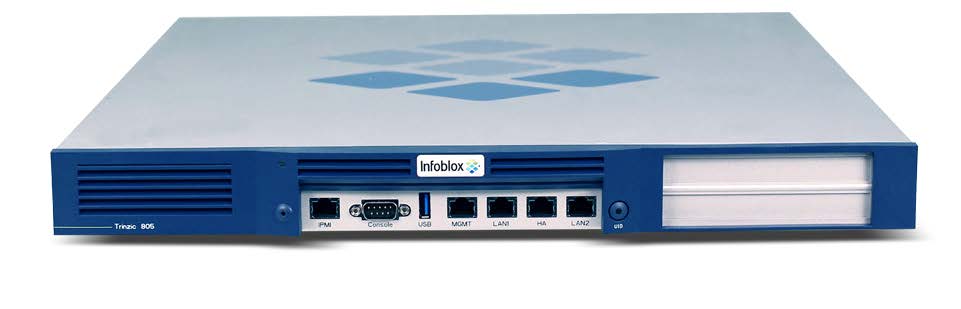

ND-805 |
![]() |

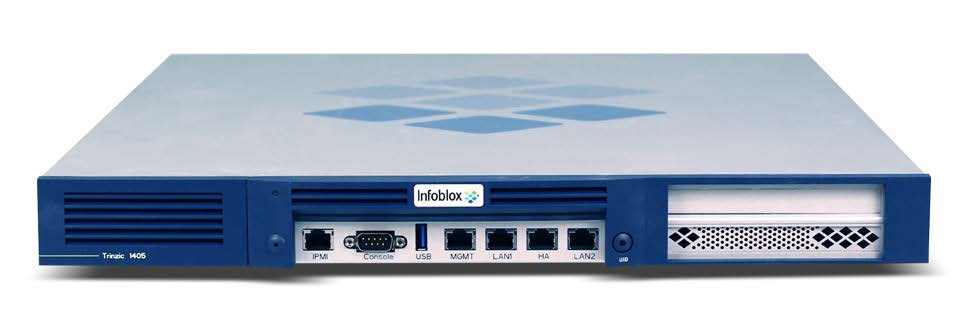

ND-1405 |
![]() |

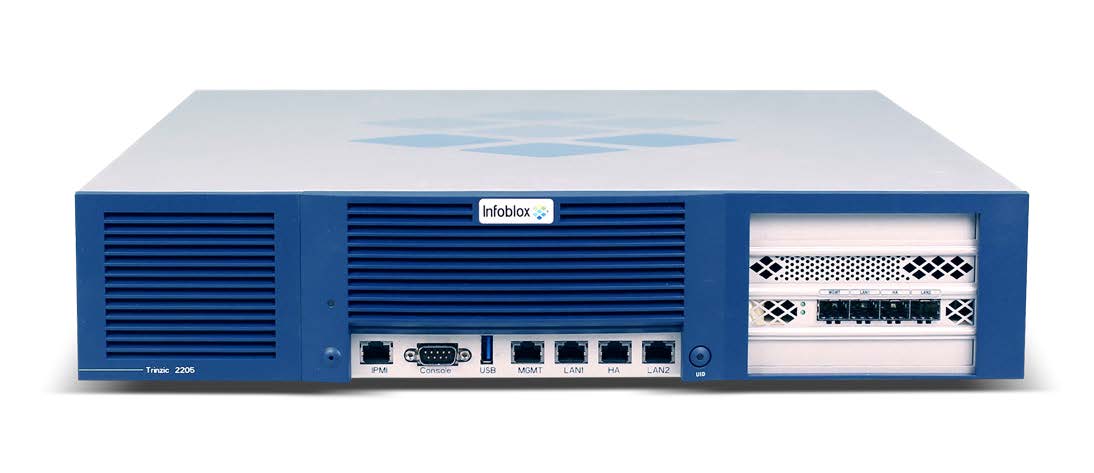

ND-2205 |
![]() |

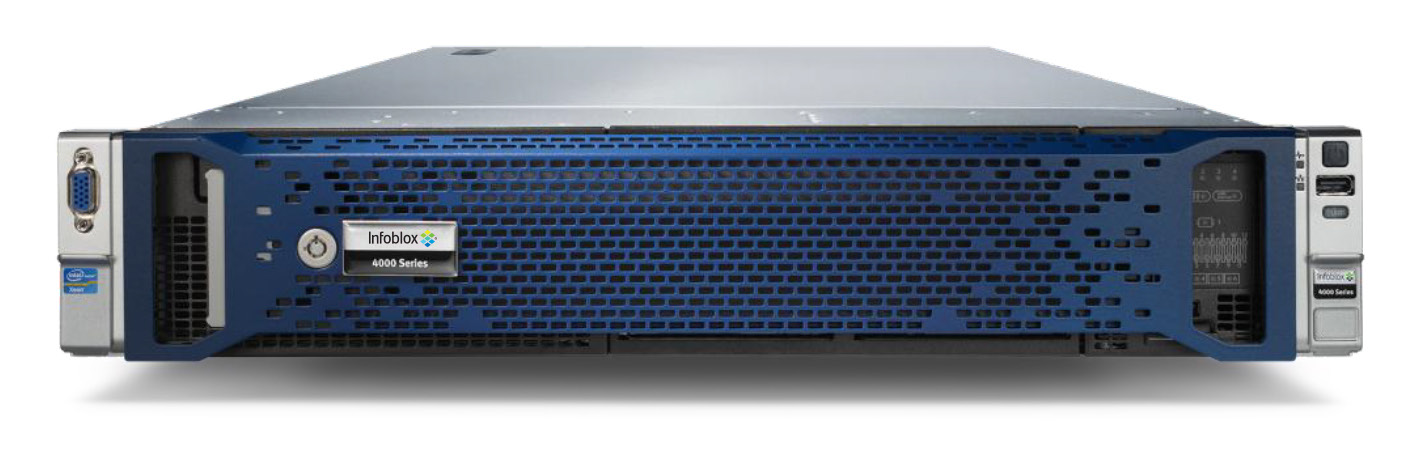

ND-4000 |
モデル | DNSスペック | DHCPスペック | 適応範囲 | |
---|---|---|---|---|
![]() |
Trinzic 815 | 6,000 DNS QPS | DHCP Leases Per Second 90 | 小規模支店 |
![]() |
Trinzic 825 | 22,500 DNS QPS | DHCP Leases Per Second 150 | 小中規模支店 |
![]() |
Trinzic 1415 | 45,000 DNS QPS | DHCP Leases Per Second 300 | 中規模支店、支社 |
![]() |
Trinzic 1425 | 75,000 DNS QPS | DHCP Leases Per Second 450 | 支社、本社 |
![]() |
Trinzic 2215 | 90,000 DNS QPS | DHCP Leases Per Second 550 | 本社、データセンター |
![]() |
Trinzic 2225 | 200,000 DNS QPS | DHCP Leases Per Second 900 | 本社、データセンター |
![]() |
Trinzic 4015 | 300,000 DNS QPS | DHCP Leases Per Second 1400 | 本社、データセンター |
![]() |
Trinzic 4025 | 300,000 DNS QPS | DHCP Leases Per Second 1400 | 本社、データセンター |
Performance Specification | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Trinzic 815 | Trinzic 825 | Trinzic 1415 | Trinzic 1425 | Trinzic 2215 | Trinzic 2225 | Trinzic 4015 / 4025 | ||||
DNS Queries per Second* | 6K | 22.5K | 45K | 75K | 90K | 200K | 300K | |||
DHCP Leases per Second* | 90 | 150 | 300 | 450 | 550 | 900 | 1400 | |||
Hardware Redundancy | N/A | Optional second power supply Hot-swappable redundant Field-replaceable hard disk | Hot-swappable, redundant power supplies, fans, and four disks RAID-10 | |||||||
Virtual Appliances Supported | Yes | Yes | Yes |
*The stated performance numbers were derived in an Infoblox test environment. Actual performance in live production
environments may be different.
Trinzic 815 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port • IPMI 2.0 compliant • Supports IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | NA |
Unit Identification | Front and back |
AC Power Supply | • One internal fixed PSU • Input voltage: 100–240 VAC switchable 47–63 Hz • Output power: 350W |
DC Power Supply | NA |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Three fixed fans • One fixed disk drive • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 1U, 19 in., rack mountable • Height: 44 mm (1.73 in.); 1 rack unit • Width: 441 mm (17.36 in.) • Depth: 522 mm (20.55 in.) • Weight: Approximately 17 lbs (7.71 kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and GOST • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
Trinzic 815 Virtual Appliances | |
---|---|
Hypervisors and Cloud Platforms Supported | ESXi, Hyper-V, KVM |
Trinzic 825 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port; IPMI 2.0 compliant • Support IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | N/A |
Unit Identification | Front and back |
AC Power Supply | • One internal fixed PSU • Input voltage: 100–240 VAC switchable 47–63 Hz • Output power: 350W |
DC Power Supply | N/A |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Three fixed fans • One fixed disk drive • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 1U, 19 in., rack mountable • Height: 44 mm (1.73 in.); 1 rack unit • Width: 441 mm (17.36 in.) • Depth: 522 mm (20.55 in.); • Weight: Approximately 17 lbs (7.71kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
Trinzic 825 Virtual Appliances | |
---|---|
Hypervisors and Cloud Platforms Supported | ESXi, Hyper-V, KVM, AWS, MS Azure |
Trinzic 1415 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces* |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port; IPMI 2.0 compliant • Supports IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | N/A |
Unit Identification | Front and back |
AC Power Supply | • One hot-swappable PSU • Optional second, hot-swappable, redundant PSU • Input voltage: 100–240 VAC switchable, 50–60 Hz • Output power: 600W |
DC Power Supply | • One hot-swappable PSU • Optional second, hot-swappable, redundant PSU • Input voltage: -44V to -65V; 600W |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Six fixed fans • One field-replaceable hard disk • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 1U, 19 in., rack mountable • Height: 44 mm (1.73 in.); 1 rack unit • Width: 441 mm (17.36 in.) • Depth: 547 mm (21.54 in.) • Weight: Approximately 20 lbs (9.07 kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
Trinzic 1415 Virtual Appliances | |
---|---|
Hypervisors and Cloud Platforms Supported | ESXi, Hyper-V, KVM, Xen |
Trinzic 1425 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces* |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port • IPMI 2.0 compliant • Supports IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | N/A |
Unit Identification | Front and back |
AC Power Supply | • One hot-swappable PSU • Optional second, hot-swappable, redundant PSU • Input voltage: 100–240 VAC switchable, 50–60 Hz • Output power: 600W |
DC Power Supply | • One hot-swappable PSU • Optional second, hot-swappable, redundant PSU • Input voltage: -44V to -65V; 600W |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Six fixed fans • One field-replaceable hard disk • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 1U, 19 in., rack mountable • Height: 44 mm (1.73 in.); 1 rack unit • Width: 441 mm (17.36 in.) • Depth: 547 mm (21.54 in.) • Weight: Approximately 20 lbs (9.07 kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
Trinzic 1425 Virtual Appliances | |
---|---|
Hypervisors and Cloud Platforms Supported | ESXi, KVM, AWS, MS Azure |
Trinzic 2215 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces* |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port; IPMI 2.0 compliant • Supports IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | N/A |
Unit Identification | Front and back |
AC Power Supply | • Two hot-swappable PSUs • Input voltage: 100-240 VAC switchable, 50-60 Hz • Output power: 600W |
DC Power Supply | • Two hot-swappable PSUs • Input voltage: -44V to -65V; 600W |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Six hot-swappable, redundant fans • Four hot-swappable, redundant disks RAID-10 • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40F to 122F (-40C to 50C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 2U, rack mountable • Height: 88 mm (3.46 in.); 2 rack units • Width: 441 mm (17.36 in.) • Depth: 547 mm (21.54 in.) • Weight: Approximately 29 lbs (13.15 kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
Trinzic 2215 Virtual Appliances | |
---|---|
Hypervisors and Cloud Platforms Supported | ESXi, Hyper-V, KVM |
*All models do not support SFPs. Please check for appropriate models that support it.
Trinzic 2225 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces* |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port; IPMI 2.0 compliant • Supports IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | N/A |
Unit Identification | Front and back |
AC Power Supply | • Two hot-swappable PSUs • Input voltage: 100-240 VAC switchable, 50-60 Hz • Output power: 600W |
DC Power Supply | • Two hot-swappable PSUs • Input voltage: -44V to -65V; 600W |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Six hot-swappable, redundant fans • Four hot-swappable, redundant disks RAID-10 • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 2U, rack mountable • Height: 88 mm (3.46 in.); 2 rack units • Width: 441 mm (17.36 in.) • Depth: 547 mm (21.54 in.) • Weight: Approximately 29 lbs (13.15 kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
Trinzic 2225 Virtual Appliances | |
---|---|
Hypervisors and Cloud Platforms Supported | ESXi, Hyper-V, KVM, AWS, MS Azure |
*All models do not support SFPs. Please check for appropriate models that support it.
Trinzic 4015 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces* |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port • IPMI 2.0 compliant |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | Six USB 2.0/1.1 compliant (reserved for future use) |
LCD Panel | NA |
AC Power Supply | • Two hot-swappable, redundant PSUs • Input voltage: 100–240 VAC, 50–60 Hz • Output power: 600W |
DC Power Supply | • Two hot-swappable, redundant PSUs • Input voltage: -44V to -65V |
Disk and Fans | • Four or six (four for AC model, six for DC/NEBS model) hot-swappable, redundant fans • Four hot-swappable, redundant disks RAID-10 |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 10% to 90% non-condensing |
Dimensions and Weight | • Enclosure: 2U, rack mountable (4-post only) • Height: 88 mm (3.46 in.); 2 rack units • Width: 441 mm (17.36 in.) • Depth: 534 mm (21 in.) • Weight: Approximately 29 lbs (13.15 kg) |
Rail Kit | 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
*All models do not support SFPs. Please check for appropriate models that support it.
Trinzic 4025 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces* |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port; IPMI 2.0 compliant |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | Six USB 2.0/1.1 compliant (reserved for future use) |
LCD Panel | NA |
AC Power Supply | • Two hot-swappable, redundant PSUs • Input voltage: 100–240 VAC, 50–60 Hz • Output power: 600W |
DC Power Supply | • Two hot-swappable, redundant PSUs • Input voltage: -44V to -65V |
Disk and Fans | • Four hot-swappable, redundant fans • Four hot-swappable, redundant disks RAID-10 |
Operating Temperature | • 41°F to 95°F (10°C to 35°C) • 5% to 95% non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 10% to 90% non-condensing |
Dimensions and Weight | • Enclosure: 2U, rack mountable (4-post only) • Height: 88 mm (3.46 in.); 2 rack units • Width: 441 mm (17.36 in.) • Depth: 534 mm (21 in.) • Weight: Approximately 29 lbs (13.15 kg) |
Rail Kit | 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
*All models do not support SFPs. Please check for appropriate models that support it.
ND 805 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) |
Lights Out Management (LOM) | • One 10/100 Base-T Ethernet LOM port • IPMI 2.0 compliant • Supports IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | NA |
Unit Identification | Front and back |
AC Power Supply | • One internal fixed PSU • Input voltage: 100–240 VAC switchable 47–63 Hz • Output power: 350W |
DC Power Supply | NA |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Three fixed fans • One fixed disk drive • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 1U, 19 in., rack mountable • Height: 44 mm (1.73 in.); 1 rack unit • Width: 441 mm (17.36 in.) • Depth: 522 mm (20.55 in.) • Weight: Approximately 17 lbs (7.71 kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and GOST • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
ND 805 Virtual Appliances | |
---|---|
Hypervisors Supported | ESXi, Hyper-V, KVM |
ND-1405 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces* |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port; IPMI 2.0 compliant • Supports IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | N/A |
Unit Identification | Front and back |
AC Power Supply | • One hot-swappable PSU • Optional second, hot-swappable, redundant PSU • Input voltage: 100–240 VAC switchable, 50–60 Hz • Output power: 600W |
DC Power Supply | • One hot-swappable PSU • Optional second, hot-swappable, redundant PSU • Input voltage: -44–65DC; 600W |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Six fixed fans • Two field-replaceable hard disk • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40°F to 122°F (-40°C to 50°C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 1U, 19 in., rack mountable • Height: 44 mm (1.73 in.); 1 rack unit • Width: 441 mm (17.36 in.) • Depth: 547 mm (21.54 in.) • Weight: Approximately 20 lbs (9.07 kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
ND-1405 Virtual Appliances | |
---|---|
Hypervisors Supported | ESXi, Hyper-V, KVM, Xen |
*All models do not support SFPs. Please check for appropriate models that support it.
ND-2205 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces* |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port; IPMI 2.0 compliant • Supports IPv4 |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | One USB 3.0/2.0 compliant (reserved for future use) |
LCD Panel | N/A |
Unit Identification | Front and back |
AC Power Supply | • Two hot-swappable PSUs • Input voltage: 100-240 VAC switchable, 50-60 Hz • Output power: 600W |
DC Power Supply | • Two hot-swappable PSUs • Input voltage: -44–65DC; 600W |
Chassis Ground | Included (ground lug) |
Disk and Fans | • Six hot-swappable, redundant fans • Four hot-swappable, redundant disks RAID-10 • System on flash |
Operating Temperature | • 41°F to 95°F (5°C to 35°C) • 5% to 95% relative humidity, non-condensing |
Storage Temperature | • -40F to 122F (-40C to 50C) • 5% to 95% relative humidity, non-condensing |
Dimensions and Weight | • Enclosure: 2U, rack mountable • Height: 88 mm (3.46 in.); 2 rack units • Width: 441 mm (17.36 in.) • Depth: 547 mm (21.54 in.) • Weight: Approximately 29 lbs (13.15 kg) |
Rail Kit | Choice of 2-post, up-to-600 mm 4-post, or 600–900 mm 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, and EAC • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
ND-2205 Virtual Appliances | |
---|---|
Hypervisor Supported | ESXi, Hyper-V, KVM |
*All models do not support SFPs. Please check for appropriate models that support it.
ND-4000 | |
---|---|
Network Interfaces | • Two 10/100/1000 Base-T Ethernet (LAN ports) • One 10/100/1000 Base-T Ethernet (HA port) • One 10/100/1000 Base-T Ethernet (MGMT port) • Optional: Four 1GE SFP or 1GE/10GE SFP+ interfaces |
Lights Out Management (LOM) | • One 10/100/1000 Base-T Ethernet LOM port (reserved for future use) • IPMI 2.0 compliant |
Serial Port | DB-9 (9600/8n1, Xon/Xoff) |
USB Ports | Six USB 2.0/1.1 compliant (reserved for future use) |
LCD Panel | N/A |
Unit Identification | Front and back |
AC Power Supply | • Two hot-swappable, redundant PSUs • Input voltage: 100 – 120 VAC, 200 – 240 VAC 50 – 60 HZ • Output power: 750W |
DC Power Supply | N/A |
Chassis Ground | N/A |
Disk and Fans | • Six hot swappable redundant fans • Eight hot swappable, redundant hard drives RAID-10 (1.2 TB of available storage) |
Operating Temperature | • 50°F – 95°F (10°C to 35°C) • 10% – 90% relative humidity (non-condensing) |
Storage Temperature | • -22°F – 140°F (-30°C to 60°C) • 10% – 90% relative humidity (non-condensing) |
Dimensions and Weight | • Enclosure: 2U, rack mountable (4-post only) • Height: 85.9mm (3.38 in.); 2-rack unit • Width: 445.4 mm (17.53 in.) • Depth: 660.7 mm (26.01 in.) • Approximately 60 lbs. (27.2 kg.) |
Rail Kit | 4-post |
Certifications | • Safety: FCC, CE, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM • Environmental: WEEE and RoHS |
Support | Standard warranty includes 90-day software support with one-year hardware support; upgradable |
